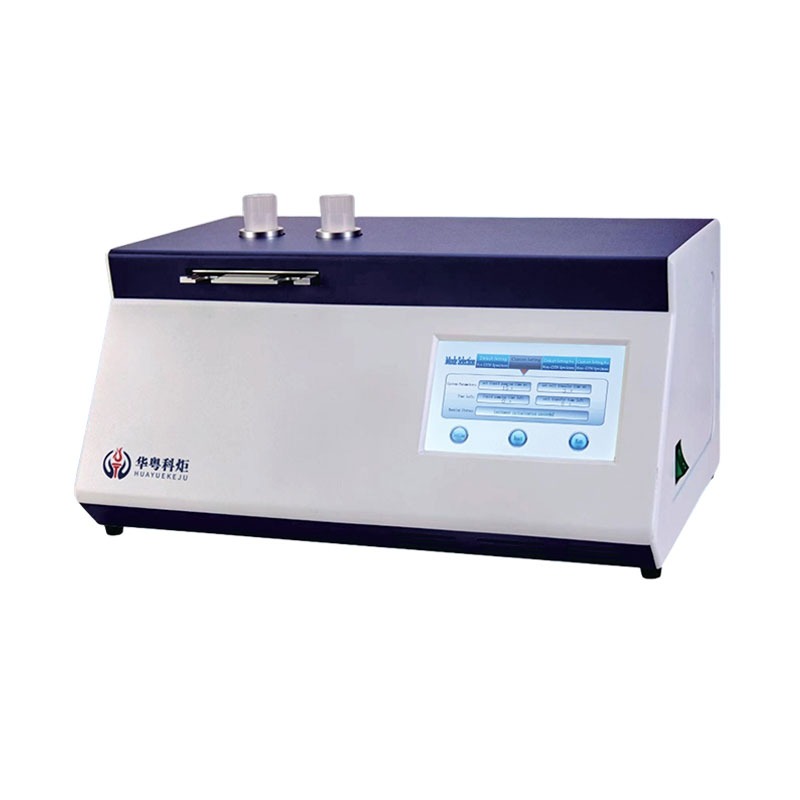

Huayuekeju HYKJTCT-20

Category Tag Brand:
huayuekeju hykjtct 20

Highlights & Key Features

  • Fully Automated Liquid-Based Cytology Processor
    Designed for modern pathology laboratories to produce consistent, high-quality cytology slides.

  • Double-Layer Membrane Filtration Technology
    Advanced two-stage filtration removes mucus, debris, and red blood cells for a clean smear background.

  • High-Quality Smear Preparation
    Even cell distribution with minimal overlap and no cellular deformation.

  • High Throughput Performance
    Processes up to 150 slides per hour, supporting single or dual sample operation.

  • Fully Automated Workflow
    Microcomputer-controlled system with precision sensors eliminates manual handling.

  • Cell Morphology Protection
    Elastic buffering mechanism ensures uniform pressure during cell transfer.

  • Wide Range of Applications
    Suitable for GYN and Non-GYN samples including sputum, urine, FNA, and serous effusions.

  • Optimized Membrane Pore Sizes
    7.8 µm for GYN and 5 µm for Non-GYN examinations.

  • Complete Reagent and Consumables System
    Ethanol-based preservation solution with a full range of compatible consumables.

Huayuekeju HYKJTCT-20 is a fully automated liquid-based cytology slide processor designed for modern pathology laboratories. The system integrates the advantages of membrane filtration and sedimentation methods, delivering an innovative solution for producing high-quality cytology smears with a clean, clear background.

Double-Layer Membrane Filtration Technology

The most distinctive feature of this instrument is its double-layer membrane slide preparation technology, which operates through a highly precise mechanism:

  • First Layer: Filters out large mucus fragments and coarse tissue debris.
  • Second Layer: Removes smaller cellular debris and red blood cells.
  • Final Result: Diagnostic cellular components and pathogens are retained between the two membrane layers and then evenly transferred onto the slide without deformation and with minimal overlapping.

This method effectively overcomes the limitations of single-layer membrane filtration, such as cell aggregation or uneven distribution, ensuring a clean smear background that is easy to interpret.

High Processing Speed

Designed for high productivity, the instrument is capable of processing up to 150 slides per hour. It can handle two samples simultaneously or operate with a single sample as needed, providing excellent operational flexibility.

Full Automation

Equipped with advanced sensors and precision motion control, the entire slide processing workflow is managed by an onboard microcomputer, eliminating the need for manual intervention. An elastic buffer device ensures uniform pressure during cell transfer, preventing damage to cellular morphology.

Wide Range of Applications

The system software is highly flexible and supports a broad spectrum of cytopathology tests, including Gynecological (GYN) and Non-Gynecological (Non-GYN) samples such as sputum, urine, fine needle aspiration (FNA), and serous effusions. Membrane pore sizes are optimized according to test type: 7.8 µm for GYN tests and 5 µm for Non-GYN tests.

Reagent System

The cell preservation solution is ethanol-based, effectively removing blood and mucus while maintaining cellular morphological integrity. The instrument package is supported by a complete range of consumables, including filters, slides, and disposable pipettes.

Dimensions

490 mm (Length) × 290 mm (Width) × 250 mm (Height).
Weight

Approximately 10 kg.
Power Supply

AC 220V, 50 Hz, with a maximum power consumption of 50 VA.
Smear Size

Circular, with a diameter of 19 mm.
Smear Diameter

19 mm (Circular)
Automation Level

Fully Automated
