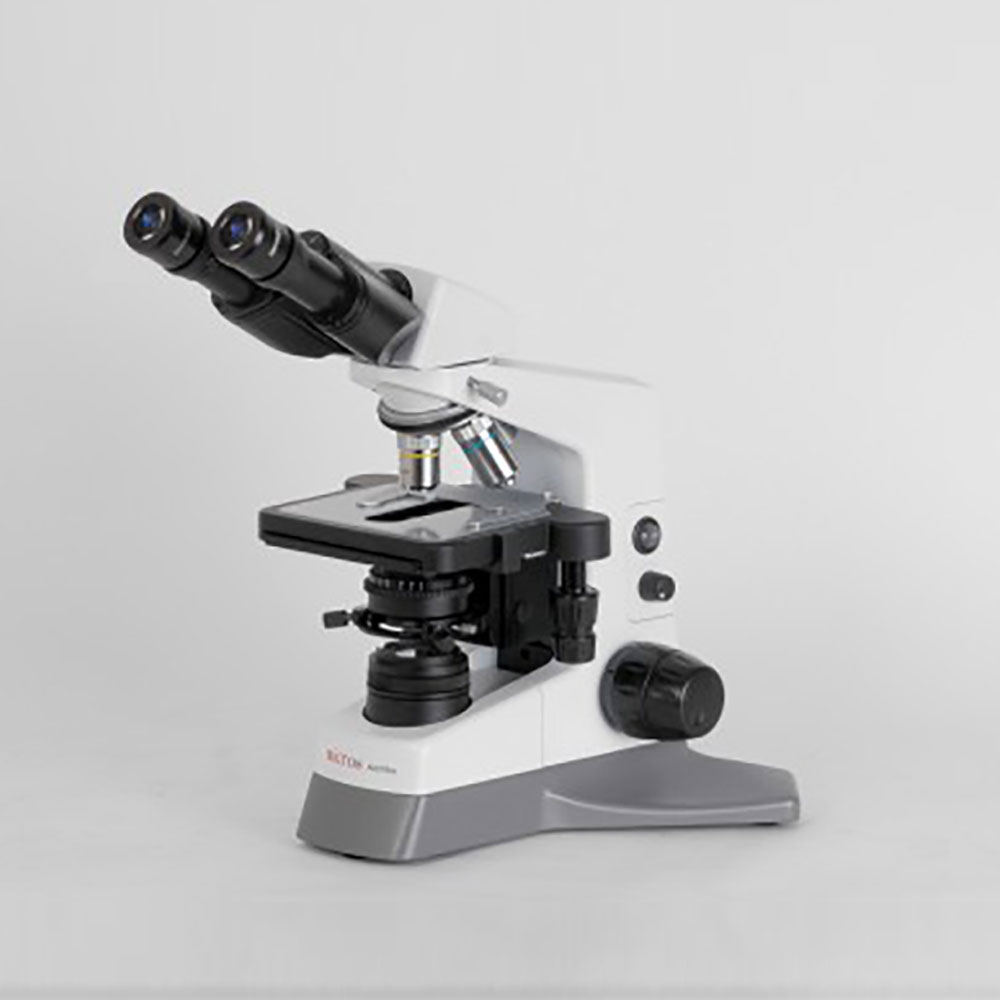

Daffodil MCX100

Category Tag Brand:
daffodil mcx100
daffodil mcx100
daffodil mcx100

Highlights & Key Features
Key Features
  • Infinity-Corrected Optics
    Delivers sharp, high-contrast, and crystal-clear images.
  • Advanced Illumination System
    Energy-efficient LED or halogen with Köhler illumination.
  • Precise & Safe Focusing
    Coaxial coarse/fine focus with safety stop and 2 µm fine adjustment.
  • Flexible & Ergonomic Viewing
    30° inclined, 360° rotatable tube with diopter adjustment.
  • High-Performance Objectives
    ICO² Plan objectives from 4× to 100× oil immersion.
  • Stable & Versatile Design
    Robust housing, smooth mechanical stage, suitable for routine to advanced lab work.

Daffodil MCX100 offers premium features for a wide range of advanced laboratory applications, including gynecology, dermatology, histology, and pathology. Its brilliant optical system with infinity correction combined with an advanced energy-efficient LED illumination system or a bright halogen illumination option delivers exceptionally high-contrast and crystal-clear images.

Housing
  • MCX100 housing with integrated LED illumination.
  • Stable base size: 300 × 270 mm.
Objective Nosepiece
  • Five-position revolving nosepiece.
Focusing System

Coaxial coarse and fine focusing controls, calibrated with integrated tension adjustment and an automatic safety focus stop.

  • Total focusing range: 20 mm
  • Fine focus graduation: 2 µm
Viewing Tube

Arctype tube for INFINITY optics, 30° inclined, 360° rotatable.

  • Interpupillary distance: 48 – 75 mm
  • Diopter adjustment
  • Anti-fungal treated optics
Eyepieces (1 Pair)
  • EW10× / 20 wide-field eyepieces (Ø 23 mm), suitable for eyeglass wearers.
Mechanical Stage

Rackless mechanical glass stage, size 150 × 133 mm.

  • Travel range: 76 mm (X) × 30 mm (Y)
  • Equipped with a replaceable ultra-tempered flexible glass top with rounded edges for safe handling
  • Coated surface resistant to chemicals and scratches
Multi-System Condenser

Abbé brightfield condenser with aperture diaphragm, NA 1.25.

  • Objective-specific scale for quick presetting and optimal image results
  • Available condenser apertures allow easy microscope upgrades
  • Optional sliders for HF/DF, BF/PH, and HF/DF/PH
Illumination System
  • Köhler illumination system with field iris diaphragm.
Infinity-Corrected ICO² Objectives
  • ICO² Plan 4× / 0.10, WD 17.3 mm
  • ICO² Plan 10× / 0.25, WD 10.2 mm
  • ICO² Plan 40× / 0.65, spring-loaded, WD 0.54 mm
  • ICO² Plan 100× / 1.25 oil immersion, spring-loaded, WD 0.13 mm
Wide Application Coverage

Suitable for routine and advanced use in gynecology, dermatology, histology, and pathology laboratories.
Anti-Fungal Optical Treatment

Protects optical components and ensures stable image quality in humid laboratory environments.
Rackless Mechanical Glass Stage

Provides smooth, precise slide movement with a durable, chemical- and scratch-resistant surface.
Upgradeable Condenser System

NA 1.25 condenser supports brightfield and optional DF, PH, and HF for future expansion.
User-Friendly Observation

Wide-field eyepieces and ergonomic tube design reduce eye strain during long working sessions.
Compact & Stable Construction

Space-saving benchtop design with a solid base for vibration-free operation.
